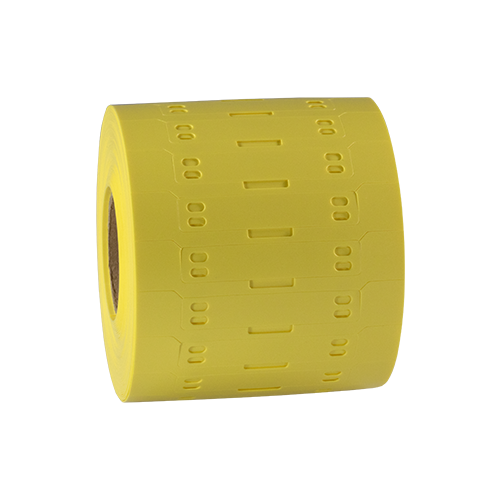

M1821 Polyurethane cable tags without adhesive

In stock

€--,--

Article number: 10.055.002

Custom advice

In-house design and manufacturing

Large selection of materials

Quick turnaround

Product sample aanvragen?

Informatie

Product information

M1821 Halogen-free, flame-retardant cable tags

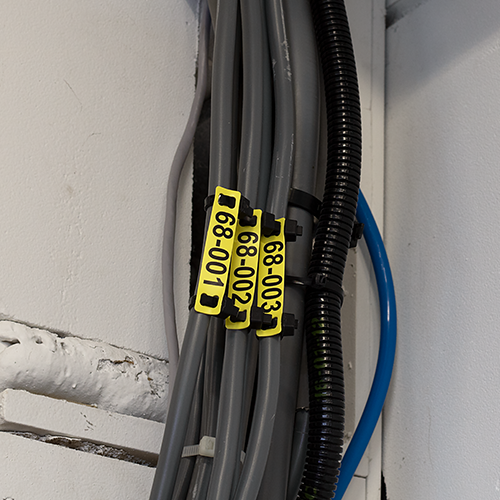

These cable tags are made from high-quality, flame-retardant PUR (polyether polyurethane). They are equipped with slots on both sides for easy application with tie wraps to a single cable or a cable bundle.

We supply these cable tags mainly to solar panel installers due to their long lifespan and easy application. The tags can be printed to be highly scratch-resistant, weatherproof, heat-resistant, and with exceptional resistance to oils, chemicals, hydrolysis, and micro organisms.

If you would like to add dan extra level of protection to both the cable tag and the print, we can supply separate laminate labels (M1602) with your order. These are custom-made to fit the size of the cable tags you order, allowing you to laminate the cable tags after printing. Feel free to ask our experts about the separate laminate labels when requesting a quote.

Questions or custom advice

For questions about the cable tags or other label materials for cable and wire identification, feel free to contact our advisors.

I have a question

Variants M1821 Cable tags

Article number	Width (mm)	Height(mm)	Number of labels per roll	Core (mm)	Colour
10.055.005	60,0	12,0	1.000	40	Zwart
10.055.002	60,0	12,0	1.000	40	Wit
10.055.001	60,0	12,0	1.000	40	Geel
10.055.003	60,0	12,0	1.000	40	Rood
10.055.006	60,0	12,0	1.000	40	Donkerblauw
10.055.004	60,0	12,0	1.000	40	Lichtblauw
10.055.007	60,0	12,0	1.000	40	Oranje
10.055.012	75,0	15,0	1.000	40	Zwart
10.055.013	75,0	15,0	1.000	40	Donkerblauw
10.055.011	75,0	15,0	1.000	40	Lichtblauw
10.055.010	75,0	15,0	1.000	40	Rood
10.055.009	75,0	15,0	1.000	40	Wit
10.055.008	75,0	15,0	1.000	40	Geel
10.055.014	75,0	15,0	1.000	40	Oranje
10.055.021	75,0	25,0	500	40	Oranje
10.055.020	75,0	25,0	500	40	Donkerblauw
10.055.019	75,0	25,0	500	40	Zwart
10.055.018	75,0	25,0	500	40	Lichtblauw
10.055.017	75,0	25,0	500	40	Rood
10.055.016	75,0	25,0	500	40	Wit
10.055.015	75,0	25,0	500	40	Geel

Do you have any questions about any of the variants? Contact us for custom advice.

Specifications

Article number: 10.055.002
Operating temperature: -25ºC up to +105ºC
Application temperature: 0ºC
Finish: Semi-gloss
UV resistance: High (test with UV lamp 340nm and test with XENON 340nm for 500 hours)
Chemical resistance: High (MIL-STD-202G, SAE AS-5942)
Weather-resistant: Average
Lifespan outdoor use: 5-10 years
Certification: REACH, RoHS
Flammability standard: UL94 V-0
For thermal transfer printers: Zebra, SATO, Intermec, Altec, Brady, Toshiba, Datamax, TSC, Avery, Honeywell, Canon and Citizen
Ribbons: Resin (R2304 and R2309)
